4.RTL经典代码

1.Verilog 实现串并转换

  • lsb优先
  • msb优先
input clk, rst_n, data_i;
output [7:0] data_o;
module Serialize(
	input 	clk,
	input	rst_n,
	input	data_i,
	output  reg[7:0] data_o
);
// lsb first
    always@(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
        	data_o <= 8'b0;
        end
        else begin
            data_o <= {data[6:0],data_i};
        end
    end

// msb first
reg [2:0] cnt;
    always@(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
        	data_o <= 8'b0;
            cnt<=3'd0;
        end
        else begin
            data_o[7-cnt] <= data_i;
            cnt <= cnt + 1'b1;
        end
    end

endmodule

2.异步双端口RAM

题目要求：深度为16，位宽为8bit。A口读出，B口写入。支持片选，读写请求，要求代码可综合。

module dpram_16x18(
    input clk_a,
    input [3:0] addr_a,
    input [7:0]	dout_a,
    \\...
    input clk_b,
    input [7:0] din_b,
    input [3:0] addr_b,
    \\...
);
endmodule
module Dula_Port_Sram
#(
   paramemter	ADDR_WIDTH = 4,
   paramemter	DATA_WIDTH = 8,
   paramemter	DATA_DEPTH = 1  << ADDR_WIDTH
)
(
   input clka,
   input clkb,
   input rst_n,
   input csen_n, // 使能模块与否
   // Port A Signal 读
   input [ADDR_WIDTH-1:0]	addra,
   output	reg	[DATA_WIDTH-1:0]	data_a,
   input	rdena_n,
   // Port B Signal 写
   input	[ADDR_WIDTH-1:0]	addrb,
   input 	[DATA_WIDTH-1:0]	data_b,
   input	wrenb_n,
);
	integer i;
    reg [DATA_WIDTH-1:0]	register[0:DATA_DEPTH-1];

    always @(posedge clkb or negedge rst_n)begin
        if(~rst_n)begin
            for(i=0;i<DATA_DEPTH;i=i+1)
                register[i]<=8'b0;
        end
        else if(~wrenb_n && csen_n == 1'b0)
            register[addrb]<= data_b;
    end

    always @(posedge clka or negedge rst_n) begin
        if(~rst_n)begin
            data_a <=0;
        end
        else if(rdena_n == 1'b0 &&& csen_n ==1'b0)
            data_a <= register[addra];
        else
            data_a <= data_a;
    end
endmodule

3.Verilog 三分频电路且占空比为50%

module Div_three(
    input clk,
    input rst_n,
    output div_three
);

reg [1:0] cnt;
reg     div_clk1;
reg     div_clk2;

always @(posedge clk or negedge rst_n)begin
    if(~rst_n)begin
        cnt <=0;
    end
    else if(cnt == 2)
        cnt <=0;
    else begin
        cnt <= cnt + 1'b1;
    end
end

always @(posedge clk or negedge rst_n)begin
    if(~rst_n)begin
        div_clk1 <= 0;
    end
    else if(cnt == 0)begin
        div_clk1 <= ~div_clk1;
    end
    else begin
        div_clk1 <= div_clk1;
    end
end

always @(negedge clk or negedge rst_n)begin
    if(~rst_n)begin
        div_clk2 <= 0;
    end
    else if(cnt == 2)begin
        div_clk2<=~div_clk2;
    end
    else
        div_clk2 <= div_clk2;
end

assign div_three = div_clk2 ^ div_clk1;
endmodule
echo "开始编译"
iverilog -o wave Div_three.v tb_Div_three.v
echo "编译完成"
vvp -n wave -lxt2
echo "打开波形文件"
gtkwave wave.vcd
`timescale 1ns / 1ps
module tb_Div_three;
    // Parameters
    parameter CLK_PERIOD = 10; // Clock period
    // Signals
    reg clk;
    reg rst_n;
    wire div_three;
    // Instantiate the Div_three module
    Div_three uut (
        .clk(clk),
        .rst_n(rst_n),
        .div_three(div_three)
    );
    // Clock generation
    initial begin
        clk = 0;
        forever #(CLK_PERIOD / 2) clk = ~clk; // Toggle clock
    end

initial //启动 iverilog
begin
    $dumpfile("wave.vcd");        //生成的vcd文件名称
    $dumpvars(0, tb_Div_three);    //tb模块名称
end
    // Test sequence
    initial begin
        // Initialize signals
        rst_n = 0; // Active low reset
        #15;       // Wait for a few clock cycles
        rst_n = 1; // Release reset
        // Run for a while
        #100;      // Simulate for 100 time units
        // Finish the simulation
        $finish;
    end
endmodule

4.glitch free 时钟切换电路

https://blog.csdn.net/bleauchat/article/details/96180815

要求：输入 sel ,clka ,clkb ,sel为1输出clka, sel为0输出clkb

  • 有毛刺时钟切换电路

  • 源时钟相互倍数关系，下时钟开关出现毛刺的解决

    -- 在时钟源的选择路径中增加 负边沿D触发器

reg out1,out2;
always @(negedge CLK1 or negedge rst_n)begin
  if(~rst_n)begin
    out1 <=0;
  end
  else begin
    out1<= SELECT & ~out2;
  end
end
always@(negedge CLK0 or negedge rst_n)begin
  if(~rst_n)begin
    out2 <=0;
  end
  else begin
    out2<=~SELECT & ~out1;
  end
end

assign OUTPUT_CLK= (CLK1 & out1)|(CLK0 & out2);

  • 针对无关时钟的毛刺保护

    在上边的基础上，再添加一个额外级的正边沿触发触发器来提供针对亚稳态性的保护

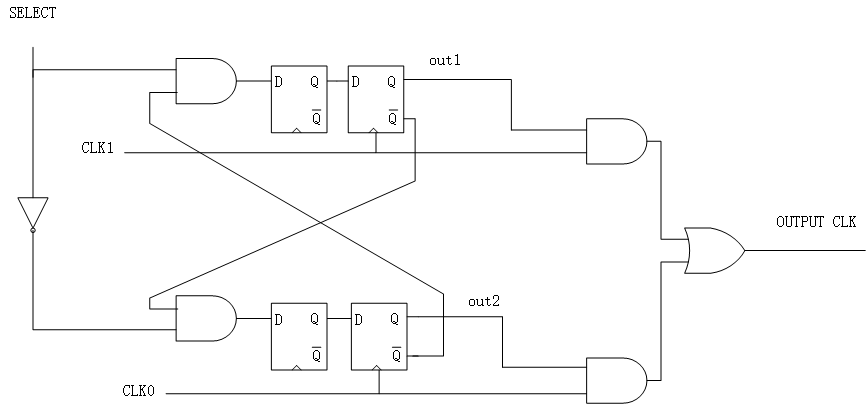

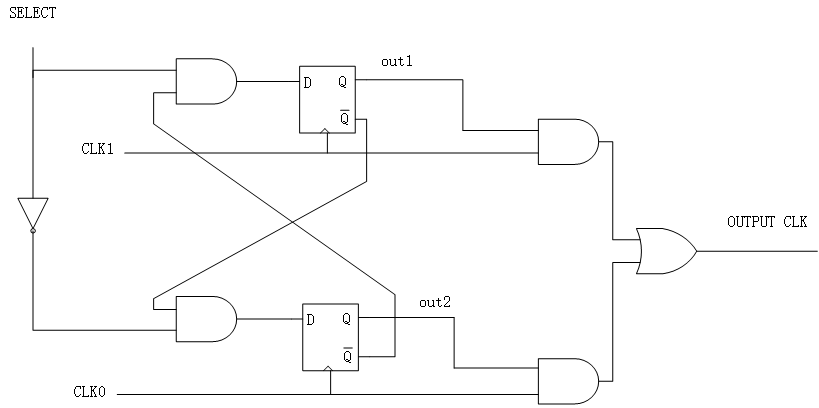

image-20240820100245831
image-20240820100245831

5.异步复位同步释放电路

module Sys_Rst(
	input	clk,
  input rst,
  output	sys_rst
);
  reg rst_r0,rst_r1;
  always @(posedge clk or posedge rst) begin
    if(rst)begin
    	rst_r0 <= 1'b1;
      rst_r1 <= 1'b1;
    end
    else begin
      rst_r0 <= rst;
      rst_r1 <= rst_r0;
    end
  end

  assign sys_rst = rst_r1;

endmodule

6.按键消抖电路

module debounce(
	input		clk,
	input 	rst_n,
	input		key_in,
  output	key_flag
);
  paramemter JITTER = 240;// 12 MHz / (20 ms)

  reg [1:0]	key_r;
  wire		change;
  reg [15:0]	delay_cnt;

  always @(posedge clk or negedge rst_n )begin
    if(~rst_n)begin
      	key_r <= 0;
    end
    else begin
      	key_r <= {key_r[0],key_in};
    end
  end
  //检测按键前一个状态与后一个状态是否一致， 一致的话，change为0，计数；
  // 如不不一致，是为抖动，不计数。
  assign change = (~key_r[1] & key_r[0]) | (key_r[1] & ~key_r[0]);

  always @(posedge clk or negedge rst_n) begin
    if(~rst_n)begin
    end
    else if (change == 1'b1)
      	delay_cnt <=0;
    else if(delay_cnt == JITTER)
      	delay_cnt <= delay_cnt;
    else
      	delay_cnt <= delay_cnt + 1;
  end

  assign key_flag = ((delay_cnt == JITTER - 1 ) && (key_in == 1'b1))? 1'b1:1'b0;
endmodule

7.同步FIFO 深度为16 ，数据位宽为8bit

https://www.asic-world.com/examples/verilog/syn_fifo.html

https://www.nowcoder.com/discuss/498514402438553600?sourceSSR=search

// 返回以2为底的n的对数
function integer clog2 (input integer n); begin
  n = n - 1;
  for (clog2 = 0; n > 0; clog2 = clog2 + 1)
    n = n >> 1;
end
endfunction
module syn_fifo #(
  //## 深度为16 ，数据位宽为8bit
    parameter WIDTH = 8,
    parameter DEPTH = 16
)
(
    input clk,
    input rst_n,
    input winc, //写使能
    input [WIDTH-1:0] wdata, //写数据
    input rinc, //读使能
    output wire [WIDTH-1:0] rdata,
    output reg wfull,
    output reg rempty
);

// 用localparam
    localparam ADDR_WIDTH = $clog2(DEPTH);

    reg [ADDR_WIDTH:0]  waddr;
    reg [ADDR_WIDTH:0]  raddr;

    // FIFO写入
    always @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            waddr<='b0;
        end
        else begin
            if(winc && ~ wfull)begin
                waddr <= waddr + 1'b1;
            end
            else begin
                waddr <= waddr;
            end
        end
    end

    //FIFO 读
    always @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            raddr<=0;
        end
        else begin
            if(rinc && ~ rempty)begin
                raddr <= raddr + 1'b1;
            end
            else begin
                raddr <= raddr;
            end
        end
    end

    // 空满标志判断
    always @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            wfull  <= 1'b0;
            rempty <= 1'b0;
        end
        else begin
            wfull <=(raddr == {~waddr[ADDR_WIDTH],waddr[ADDR_WIDTH-1:0]});
            rempty<=(raddr == waddr);
        end
    end

    // 带有 parameter 例化双口RAM
    dual_port_RAM
    #(
        .DEPTH(DEPTH),
        .WIDTH(WIDTH)
    )
    dual_port_RAM_U0
    (
      .wclk(clk),
      .wenc(winc),
      .waddr(waddr[ADDR_WIDTH-1:0]),
      .wdata(wdata),
      .rclk(clk),
      .renc(rinc),
      .raddr(raddr[ADDR_WIDTH-1:0]),
      .rdata(rdata)
);
endmodule

/**************RAM 子模块*************/
module dual_port_RAM #(parameter DEPTH = 16,
             parameter WIDTH = 8)(
   input wclk
  ,input wenc
  ,input [$clog2(DEPTH)-1:0] waddr  //深度对2取对数，得到地址的位宽。
  ,input [WIDTH-1:0] wdata        //数据写入
  ,input rclk
  ,input renc
  ,input [$clog2(DEPTH)-1:0] raddr  //深度对2取对数，得到地址的位宽。
  ,output reg [WIDTH-1:0] rdata     //数据输出
);

reg [WIDTH-1:0] RAM_MEM [0:DEPTH-1];
always @(posedge wclk) begin
  if(wenc)
    RAM_MEM[waddr] <= wdata;
end
always @(posedge rclk) begin
  if(renc)
    rdata <= RAM_MEM[raddr];
end
endmodule
module tb_syn_fifo ();
reg clk,rst_n,winc,rinc;
reg [7:0]wdata;
wire wfull,rempty;
wire[7:0]	rdata;
 syn_fifo #(
 	.WIDTH (8),
	.DEPTH (16)
 )
 u0(
	clk		,
	rst_n	,
	winc	,
    wdata	,
	rinc	,
	rdata   ,
	wfull	,
	rempty
);

initial
begin
    $dumpfile("wave.vcd");        //生成的vcd文件名称
    $dumpvars(0, tb_syn_fifo);    //tb模块名称
end

integer i;
initial begin
#0;
clk=0;
rst_n=0;
#10
rst_n=1;
end


always #5 clk=~clk;

initial begin
#0;
winc=0;
rinc=0;
wdata=0;
end

initial begin
#20;
send_wr;
end

initial begin
#100
send_rd;
#1000;
$finish;
end

task send_wr;
begin
        for (i=0;i<8;i=i+1)
        begin
        @(posedge clk )begin
        winc<=1;
        wdata<=i+1;
        end
        end
     @(posedge  clk)begin
     winc<=0;
     wdata<=0;
     end
     repeat(10)@(posedge clk);
end
endtask

task send_rd;
begin
    for(i=0;i<8;i=i+1)
    begin
    @(posedge clk)begin
    rinc<=1;
    end
    @(posedge clk)begin
    rinc<=0;
    end
end
end
endtask

endmodule

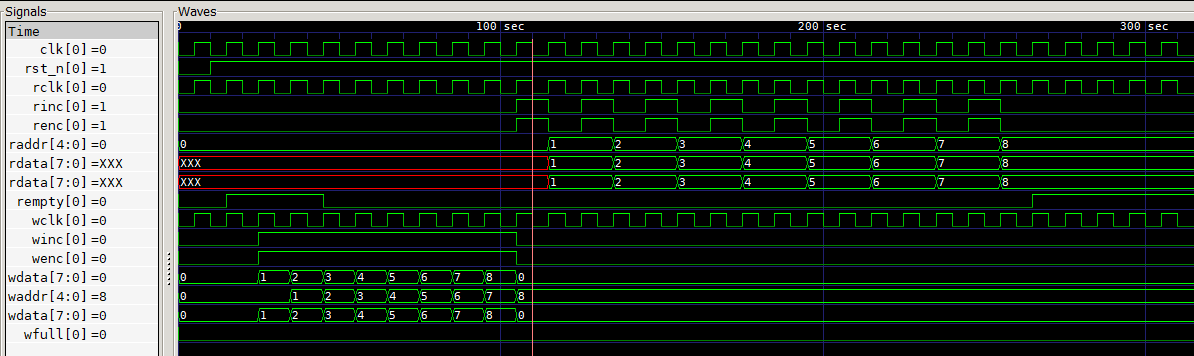

8.异步复位串联T触发器

https://blog.nowcoder.net/n/297478e0500047958c87d4a126060f1d

9.三个数中的中位数

三个8bit的无符号数a,b,c，请选择其中的中位数，资源消耗尽可能小

https://blog.csdn.net/luoai_2666/article/details/120382208

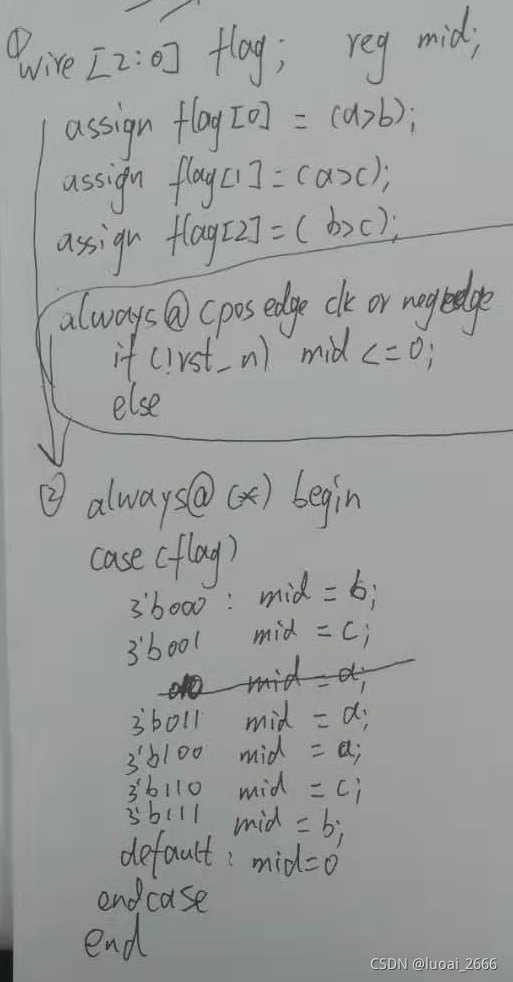

module median_finder (
    input [7:0] a,
    input [7:0] b,
    input [7:0] c,
    output reg [7:0] median
);

always @(*) begin
    // Determine the median based on comparisons
    if ((a >= b && a <= c) || (a <= b && a >= c)) begin
        median = a;  // a is the median
    end
    else if ((b >= a && b <= c) || (b <= a && b >= c)) begin
        median = b;  // b is the median
    end
    else begin
        median = c;  // c is the median
    end
end

endmodule

10.当前序列值被三整除(未确定)

输入一串序列，每次一个bit，最新的输入值落在序列的最低位，输出当前序列值能否被三整除，若是可以，则输出1，否则输出0

例子： 1011, 输入序列值为 1，3，3，11, 输出为 0110 类推

module div_by_3_sequence(
    input clk,               // 时钟信号
    input rst,               // 复位信号
    input bit_in,            // 输入比特
    output reg [7:0] result  // 输出序列，8位宽
);

    reg [3:0] current_value;  // 当前四位二进制值
    reg [2:0] count;          // 计数器，用于输出序列位数

    // 初始状态
    initial begin
        current_value = 4'b0000; // 初始化序列值为0
        result = 8'b00000000;    // 初始化输出序列为0
        count = 0;               // 初始化计数器
    end

    always @(posedge clk or posedge rst) begin
        if (rst) begin
            current_value <= 4'b0000; // 复位时序列值为0
            result <= 8'b00000000;    // 复位输出序列
            count <= 0;               // 复位计数
        end else begin
            // 将新的比特输入到序列的最低位
            current_value <= (current_value << 1) | bit_in;

            // 将可被3整除作为输出序列的一部分
            if (current_value % 3 == 0) begin
                result[count] <= 1; // 可被3整除，输出为1
            end else begin
                result[count] <= 0; // 不可被3整除，输出为0
            end

            // 更新计数器，确保输出不超过8位
            count <= (count < 7) ? count + 1 : count; // 最大计数为7，确保result为8位宽
        end
    end
endmodule

11. 卡诺图化简

1.Z=AB‾+A‾B‾C‾+A‾BC‾2.BC=01.Z=A\overline B+\overline A\overline B \overline C+\overline AB\overline C \\ 2.BC=0

写出真值表，卡诺图，以及最简表达式

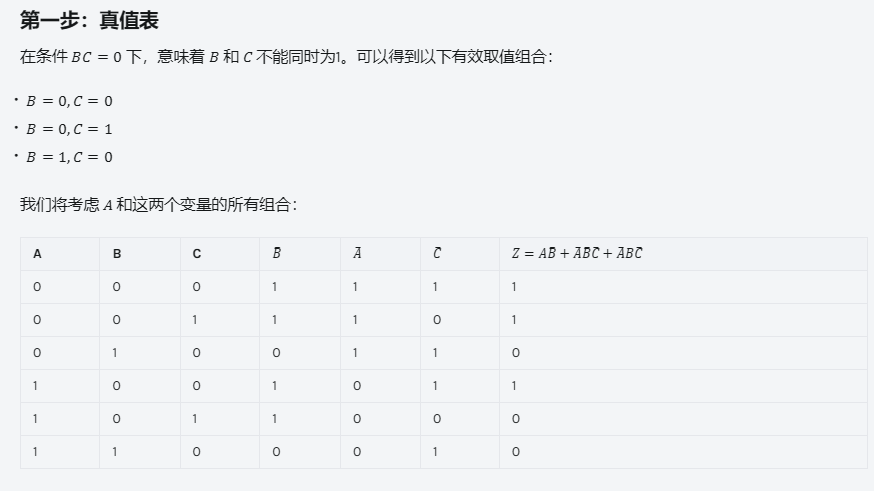

image-20240922081732321
image-20240922081732321

有：

ABCZ
0001
0011
0100
1001
1010
1100
image-20240922081823622
image-20240922081823622

12.滤除小于两个时钟周期的毛刺信号

【毛刺滤除】滤除小于m个周期的毛刺电路_verilog_毛刺过滤电路-CSDN博客

信号处理 - Digital Lab 2024 (ustc.edu.cn)

将持续时间少于 8 个时钟周期的信号毛刺全部滤除，输出变成了一个较为干净的电平信号。作为扩展，我们还可以通过调节计数器的阈值改变该电路的滤除精度

module Jitter_Clear(
    input               clk,
    input               btn,
    output              btn_clean
);
reg [3:0] cnt;

always @(posedge clk) begin
    if (!btn)
        cnt <= 4'h0;
    else if (cnt < 4'h8)
        cnt <= cnt + 1'b1;
end

assign btn_clean = cnt[3];
endmodule

13.加法与进位

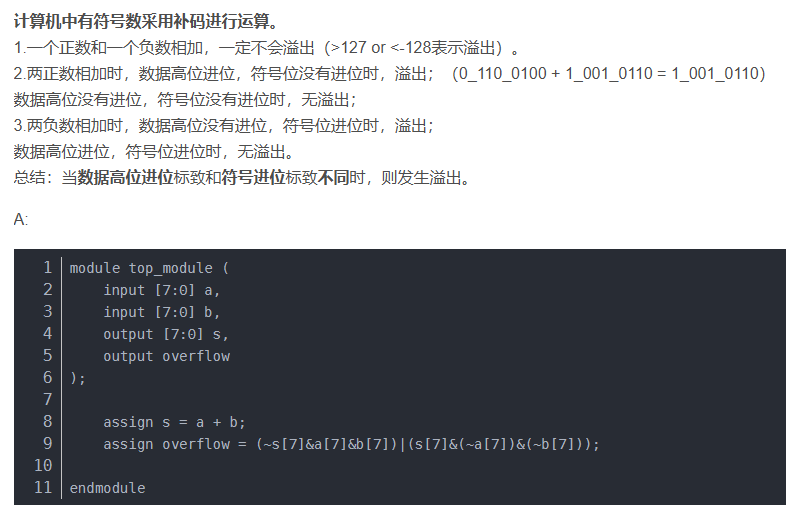

https://hdlbits.01xz.net/wiki/Exams/ece241_2014_q1c

https://blog.csdn.net/wangkai_2019/article/details/106664283

https://blog.csdn.net/wangkai_2019/article/details/106209850

image-20240922084336449
image-20240922084336449

14.2-4译码器

https://1592289828.spaces.eepw.com.cn/articles/article/item/323142

// e为低电平使能的2-4译码器
module test(
   input    a  ，
   input    b  ，
   input    e  ，

   output wire [3:0] y
);
assign y[0] = ~(~a & ~b & ~e);
assign y[1] = ~(~a &  b & ~e);
assign y[2] = ~( a & ~b & ~e);
assign y[3] = ~( a &  b & ~e);

endmodule

15.“101”序列检测器

module top(
    input           clk,
    input           rst_n,
    input           data,
    output          flag_101
    )
parameter   S0 = 0,
            S1 = 1,
            S2 = 2,
            S3 = 3;

reg     [1:0]   state;

always @(posedge clk or negedge rst_n)begin
    if(rst_n == 1'b0)begin
        state <= S0;
    end
    else begin
        case(state)
        S0:
            if(data == 1)
                state <= S1;
            else
                state <= S0;
        S1:
            if(data == 0)
                state <= S2;
            else
                state <= S1;
        S2:
            if(data == 1)
                state <= S3;
            else
                state <= S0;
        S3:
            if(data == 1)
                state <= S1;
            else
                state <= S2;
        default:
                state <=S0;
        endcase
    end
end
assign  flag_101 = (state == S3)? 1'b1: 1'b0;
endmodule

贡献者

happy-cmd
最近更新：
每天前进一点点
Copyright © 2025 Mr.Wenxin
